Threaded conduit pipe is a crucial component in electrical and telecommunications installations. It provides a safe and efficient way to protect and route electrical and communication cables, ensuring that they are secure and free from damage. Whether you are a DIY enthusiast or a professional electrician, having a good understanding of threaded conduit pipe is essential. In this comprehensive guide, we will explore the various aspects of threaded conduit pipe, including its types, installation process, and benefits. By the end of this article, you will have all the knowledge you need to effectively work with threaded conduit pipe and ensure a successful installation.
The Types of Threaded Conduit Pipe
Threaded conduit pipe comes in various types, each suitable for different applications. Here are some of the most common types:
1. Rigid Metal Conduit (RMC)

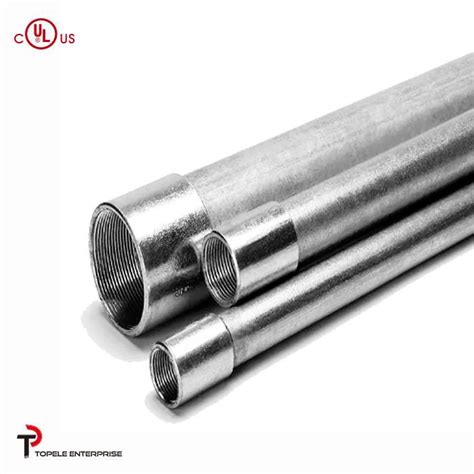

Rigid metal conduit, also known as RMC, is a heavy-duty conduit pipe made of galvanized steel. It is the most durable type of conduit pipe and provides excellent protection for electrical cables in both indoor and outdoor settings. RMC is commonly used in industrial and commercial applications where the installation requires maximum protection against physical damage and environmental hazards.
2. Intermediate Metal Conduit (IMC)
Intermediate metal conduit, or IMC, is a lighter-weight alternative to RMC. It is also made of galvanized steel but has a thinner wall compared to RMC. IMC is commonly used in commercial and residential applications where a higher level of protection is required compared to electrical metallic tubing (EMT). IMC is easier to work with and provides better protection against moisture and corrosion.
3. Electrical Metallic Tubing (EMT)
Electrical metallic tubing, or EMT, is a lightweight conduit pipe made of galvanized steel or aluminum. It is commonly used in residential and commercial applications where the installation requires moderate protection against physical damage. EMT is easy to bend and install, making it a popular choice for DIY enthusiasts and electricians. However, it is not suitable for outdoor use as it offers minimal protection against moisture and corrosion.
4. PVC Conduit
PVC conduit is a non-metallic conduit pipe made of polyvinyl chloride (PVC). It is commonly used in residential and commercial applications where the installation requires minimal protection against physical damage. PVC conduit is lightweight, easy to install, and resistant to moisture and corrosion. It is a cost-effective alternative to metal conduit pipes but may not be suitable for all applications due to its lower strength and temperature limitations.
The Installation Process
The installation process of threaded conduit pipe involves several steps to ensure a safe and efficient installation. Here is a step-by-step guide:
1. Planning and Preparation
Before starting the installation, it is essential to plan and prepare the layout of the conduit system. This includes determining the correct conduit size, calculating the number of bends and fittings required, and identifying the best route for the conduit pipes. It is crucial to comply with the local building codes and regulations during the planning process.
2. Marking and Measuring
Once the layout is planned, mark the locations where the conduit pipes will be installed. Use a measuring tape to measure the correct length of each conduit pipe and mark the cutting points accordingly. Make sure to account for the additional length required for fittings and bends.
3. Cutting and Threading
Using a conduit cutter or a hacksaw, cut the conduit pipes to the desired length. Ensure that the cuts are clean and straight to ensure a proper fit. If using threaded conduit pipe, thread the ends of the pipes using a conduit threader or a ratchet threader. Threading the ends of the conduit pipes allows for easy assembly and ensures a secure connection.
4. Assembly and Fastening
Assemble the conduit pipes by inserting one end into the fitting or coupling and tightening the connection using a wrench. Ensure that the threads are properly aligned and fully engaged to prevent any leaks or loose connections. Fasten the conduit pipes to the wall or ceiling using appropriate conduit straps or clamps at regular intervals to provide support and prevent sagging.
5. Wiring and Sealing
Once the conduit pipes are installed, pull the electrical or communication cables through the conduits. Make sure to leave enough slack for future maintenance or modifications. Seal the ends of the conduit pipes using appropriate fittings or conduit plugs to prevent the ingress of moisture or debris.
The Benefits of Threaded Conduit Pipe
Threaded conduit pipe offers several benefits that make it a preferred choice for electrical and telecommunications installations. Here are some of the key benefits:
1. Protection
Threaded conduit pipe provides excellent protection for electrical and communication cables against physical damage, moisture, and corrosion. It ensures that the cables are securely housed, reducing the risk of accidents and downtime due to cable failures.
2. Flexibility
Threaded conduit pipe allows for easy routing and rearrangement of cables, providing flexibility for future expansions or modifications. It allows electricians and technicians to add or remove cables without the need for major modifications to the conduit system.
3. Safety
Threaded conduit pipe helps prevent electrical hazards by containing the cables within a protective enclosure. It reduces the risk of accidental contact with live wires, protecting both individuals and property from electrical shocks and fires.
4. Compliance
Using threaded conduit pipe ensures compliance with building codes and regulations. It is a recognized and approved method of cable protection, providing peace of mind that the installation meets the required standards.
Conclusion
Threaded conduit pipe plays a crucial role in electrical and telecommunications installations, providing protection, flexibility, safety, and compliance. Understanding the different types of threaded conduit pipe, the installation process, and its benefits is essential for anyone working with electrical and communication cables. By following the proper installation procedures and using the appropriate type of conduit pipe, you can ensure a successful and reliable installation. So, whether you are a DIY enthusiast or a professional electrician, make sure to prioritize threaded conduit pipe in your next project.
| Types of Threaded Conduit Pipe | Rigid Metal Conduit (RMC) | Intermediate Metal Conduit (IMC) | Electrical Metallic Tubing (EMT) | PVC Conduit |
| Material | Galvanized Steel | Galvanized Steel | Galvanized Steel or Aluminum | Polyvinyl Chloride (PVC) |
| Protection Level | High | Medium | Low | Low |
| Application | Industrial and Commercial | Commercial and Residential | Residential and Commercial | Residential and Commercial |
